The more severe challenge lies in water resource management. To achieve the reuse and zero discharge of high salt extracted water or refining wastewater, the stability and anti pollution ability of the pretreatment system directly determine the success or failure and economy of the entire water treatment chain. The failure of any separation link may trigger a chain reaction, resulting in unplanned shutdowns, costly emergency repairs, loss of production capacity, and environmental risks.
In response to these separation challenges that run through the entire industry chain, we do not provide standardized products, but customized engineering solutions based on deep process understanding. Our core lies in the ability to design and integrate a full process system from multi-stage precision filtration to membrane separation based on specific fluid chemical properties, operating pressure, temperature, and spatial limitations. This includes high-pressure corrosion-resistant filter cartridges made of special alloys or high-performance polymer materials, as well as anti pollution reverse osmosis membrane components optimized for high salt and high organic load wastewater.

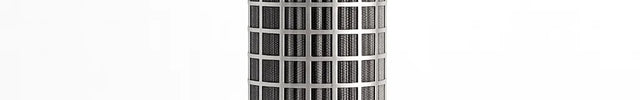

F-PSSC Folding Stainless Steel Mesh Filter Cartridge Series
A typical application case is that we provided an integrated fracturing flowback fluid treatment solution for a shale gas producer in the Permian Basin of North America. The customer is troubled by high concentrations of suspended solids and colloids in the flowback fluid, with frequent blockages in the original filtration system and a cleaning cycle of less than 8 hours. We have deployed a secondary system consisting of an automatic backwash filtration unit and our F-PSSC Folding Stainless Steel Mesh Filter Cartridge Series for it. This series of filter cartridges adopts a gradient density design, which ensures absolute filtration accuracy while increasing the pollutant holding capacity by 300%. After implementation, the stable operation cycle of the system has been extended to over 72 hours, and the SDI value of the pre treated effluent has remained stable below 3, perfectly meeting the inlet requirements of the subsequent membrane system. This has helped customers achieve a reflux rate of over 85% and significantly reduced waste disposal costs.
Value and results achieved:

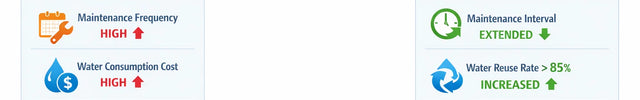

The value brought by this precise engineering intervention is quantifiable and auditable. By providing reliable fluid cleanliness assurance for critical equipment, we can extend the preventive maintenance interval of important dynamic equipment such as compressors and pumps by 40% or more, directly reducing spare parts consumption and labor costs. In terms of water resources, the combination of robust pretreatment and efficient membrane systems can increase the reuse rate of various types of wastewater to an industry-leading level of 70% -90%, significantly reducing the cost of fresh water procurement and wastewater terminal treatment. But the most decisive value lies in ensuring production continuity - avoiding the production loss recovered by an unplanned shutdown, whose economic value often far exceeds the investment in the filtration system itself. All these savings - reduced maintenance, reduced water consumption, avoided shutdowns - ultimately converge into one key performance indicator: systematic optimization of total cost of ownership. We are committed to improving the operational reliability, economic benefits, and environmental performance of our customers through solid engineering technology, while safeguarding the long-term health and value of their assets.
Oil & Gas Industry Filtration Solutions: Technical Principles & Process FAQ
What is the primary function of liquid-gas coalescer filters in natural gas processing, and how do they differ from standard particulate filters?
A: The primary function of a liquid-gas coalescer is the removal of aerosolized liquids (hydrocarbon mist, water) and sub-micron solid particulates from gas streams to protect downstream equipment. Unlike standard particulate filters that only trap solids, coalescers use a multi-stage mechanism:
- Coalescence: Fine aerosols (0.1-1.0 µm) are captured on specially treated microfibers within the coalescer media. These droplets merge ("coalesce") into larger droplets due to surface tension effects.
- Separation & Drainage: The enlarged liquid droplets drain by gravity from the gas stream into a sump for removal. The key difference is the multi-stage, engineered media designed for capturing, merging, and draining liquids, preventing re-entrainment, which is critical for meeting pipeline dew point specifications and protecting gas turbines and compressor stations.
Why is "produced water" filtration particularly challenging, and what are the key design considerations for membrane systems (e.g., UF) in this application?
A: Produced water is a complex, highly variable mixture containing dispersed and dissolved oils, suspended solids, production chemicals (demulsifiers, scale inhibitors), and high salinity, making it one of the most challenging fluids to treat.
Key design considerations for membrane systems like Ultrafiltration (UF) include:
- Robust Pretreatment: To handle high and variable oil & grease loads, protecting the UF membranes. This often involves specialized media filtration or chemical conditioning.
- Membrane Material & Configuration: Hydrophilic, oil-resistant polymeric or ceramic membranes in a cross-flow configuration are often chosen to minimize fouling and facilitate cleaning.
- Chemical Cleaning Regime (CIP): Designing effective CIP procedures to handle organic (hydrocarbon) and inorganic (scale, silica) fouling specific to the produced water chemistry is essential for long-term operational stability, especially for water reinjection (WRI) or zero liquid discharge (ZLD) projects.
In refinery catalyst recovery (e.g., FCC slurry oil), how does filtration protect critical downstream assets, and what filtration technology is most effective?
A: Fluid Catalytic Cracking (FCC) slurry oil contains highly abrasive catalyst fines (1-10 µm). Effective filtration is critical for asset protection and profitability:
- Protects Downstream Equipment: It prevents catalyst fines from causing abrasive wear in recirculation pumps, fouling in heat exchangers, and, most critically, erosive damage to the flue gas expander (power recovery turbine) blades—a multi-million-dollar asset. Clean slurry oil reduces maintenance costs and extends equipment life.
- Technology of Choice: High-temperature, high-pressure sintered metal or ceramic candle filters are most effective. They provide absolute-rated surface filtration capable of operating at full process conditions (>300°C, high viscosity), ensuring maximum catalyst removal to protect sensitive equipment and enabling the sale of clarified slurry oil as a valuable product.
What are the critical factors for selecting filter housings and elements in amine gas sweetening (acid gas removal) service?
A: Amine filtration protects the heart of the gas sweetening unit. Selection is critical due to the aggressive chemical and thermal environment:
- Material Compatibility: All wetted parts (housing, seals, filter media) must be compatible with the specific amine solvent (MDEA, DEA, etc.), high concentrations of H₂S and CO₂, and trace contaminants like degradation products (heat-stable salts). Stainless steel (e.g., 316L, 2205 duplex) and specialized elastomers are standard.
- Performance Under Load: The filter media must demonstrate high dirt-holding capacity for fine iron sulfide particles (corrosion products) and activated carbon fines, maintaining low differential pressure to avoid pump cavitation and ensure consistent amine quality, which is vital for process efficiency and corrosion control in the absorber/stripper columns.
For seawater injection systems, why is multi-stage filtration paramount, and what is the role of final cartridge filtration?
A: Seawater injection for reservoir pressure maintenance requires exceptional water quality to prevent wellbore plugging and reservoir damage.
- Why Multi-Stage: A single technology cannot remove all contaminants. A typical sequence includes:Coarse Screening: Removes large debris.Media Filtration (Dual Media/Greensand): Reduces suspended solids and soluble iron/manganese.Cartridge Filtration (Absolute Rated): Serves as the final, critical "polishing" stage.
- Role of Final Cartridge Filtration: It acts as the ultimate barrier, providing absolute removal of particles >1-2 µm that may bypass upstream filters. This ensures the injected water meets the strict solids content and particle size specifications for the reservoir, safeguarding injectivity and maximizing oil recovery. Regular integrity testing of this final barrier is a key operational practice.
How do you approach filtration system design for high-pressure, high-flow main gas line applications?
A: Filtration on main gas transmission lines requires a focus on reliability, low permanent pressure drop, and high contaminant load capacity.
- Design Philosophy: Emphasize robust vessel design per ASME BPVC codes for high-pressure (e.g., Class 600-900) and high-efficiency, large-surface-area filter elements to maximize on-stream time.
- Technology Choice: High-flow, pleated particulate filters combined with multi-stage liquid-gas coalescers are common. The system must handle large, variable contaminant loads (pigging debris, pipeline dust, condensate) without frequent change-outs. A bypass system and differential pressure monitoring are critical safety and operational features to ensure continuous, protected gas flow to compressor stations and custody transfer points.
Can you provide a complete solution from design to operation?
A: Okay. We are not only a core membrane component supplier, but also able to provide:
>Early stage: process design, simulation calculation, technology selection.
>Mid term: System integration guidance, installation and debugging support.
>Post production: Operations training, remote monitoring, preventive maintenance plans, and timely on-site technical services to ensure the long-term success of your project.
How can I obtain a specific plan and quotation for my project?
A: Please submit your requirements through the "Contact Engineer" or "Get Solution" button on the website, including basic information such as project location, expected water production, type of raw water source, and water production purpose. We will assign professional engineers to liaise with you within 24 hours and provide preliminary technical solutions and business consulting.
