The maximum working temperature is 80 ℃, the maximum working pressure difference is 2.1bar25 ℃, 1.0bar80 ℃, and the filtration accuracy is 0.04 μ m-18 μ m.

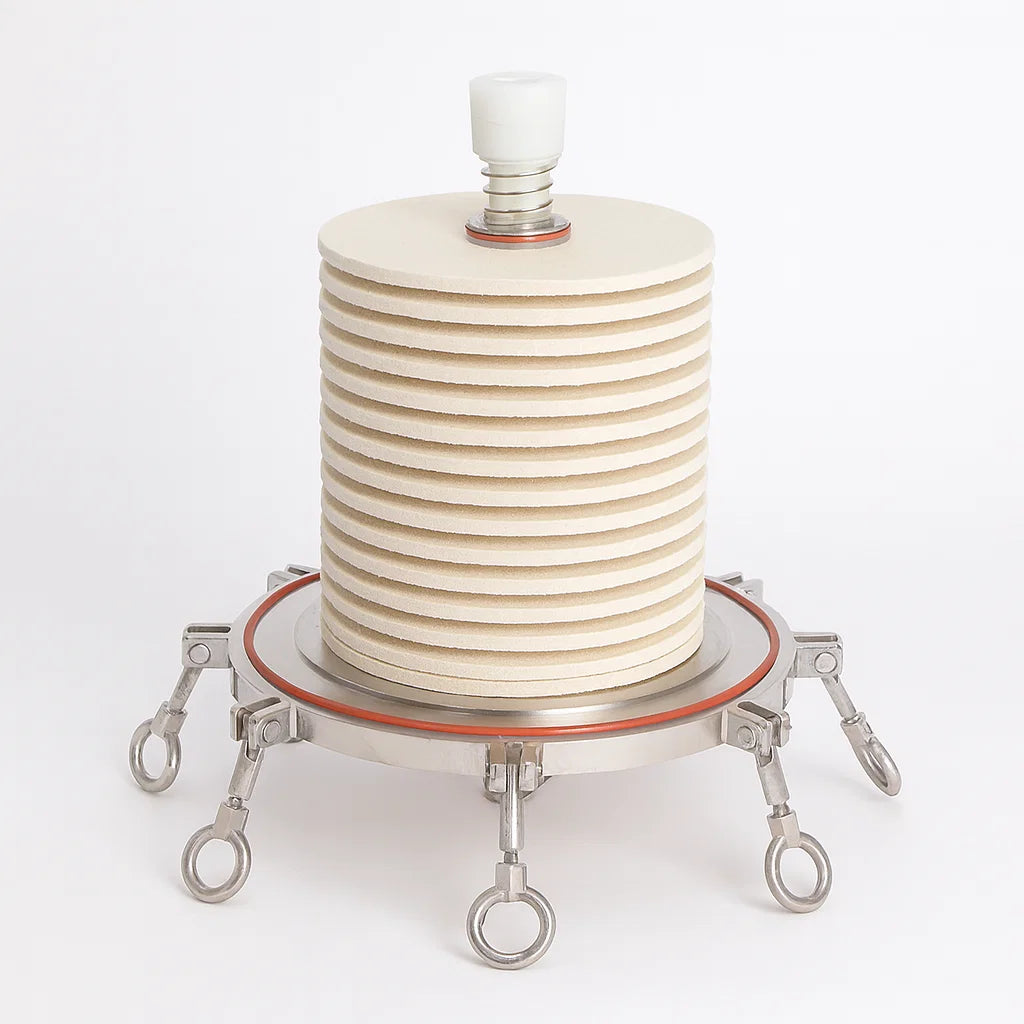

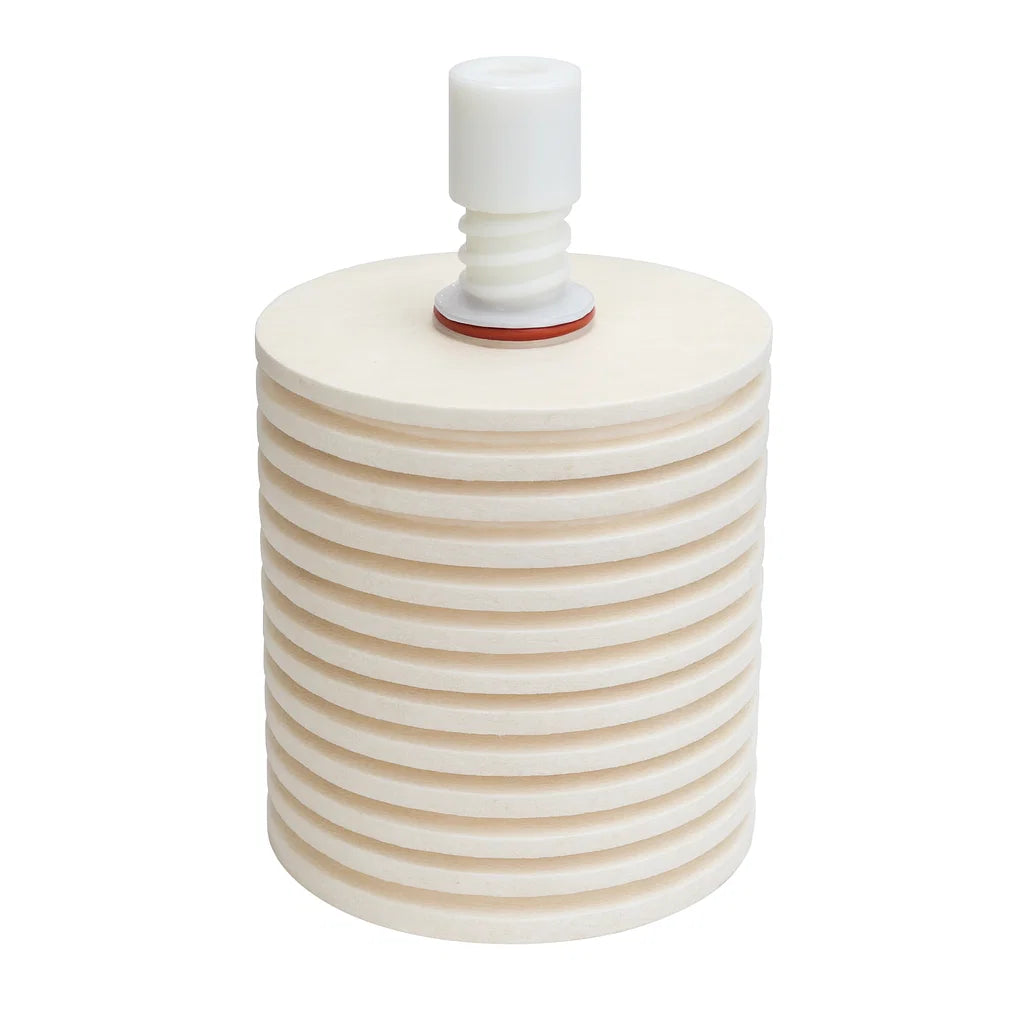

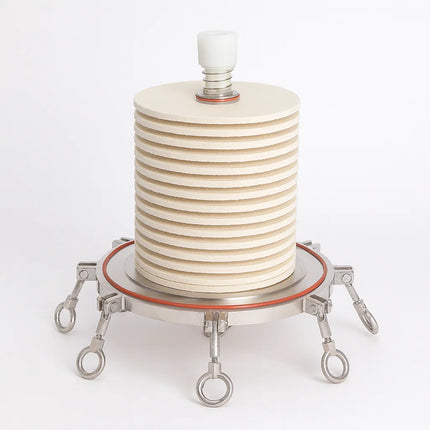

The CSD series laminated cardboard filter cartridge is an innovative deep filtration solution. It is composed of high-purity lignocellulose, diatomaceous earth, and special resin composite, forming a three-dimensional spatial structure inside. It can effectively intercept and adsorb impurities such as particles, cell debris, and endotoxins in the solution, achieving high pollutant holding capacity and long lifespan.
Its filter type design completely replaces traditional plate and frame filter machines, eliminating the need for pre coating with diatomaceous earth and preventing material loss. After use, it can be directly burned and treated, making it more environmentally friendly and efficient. Among them, the CSD-C series combines activated carbon into the filter element, achieving adsorption while filtering, and there is no risk of activated carbon leakage, providing the industry with a new integrated filtration option.
