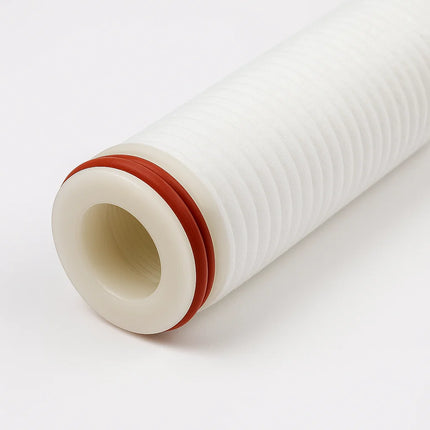

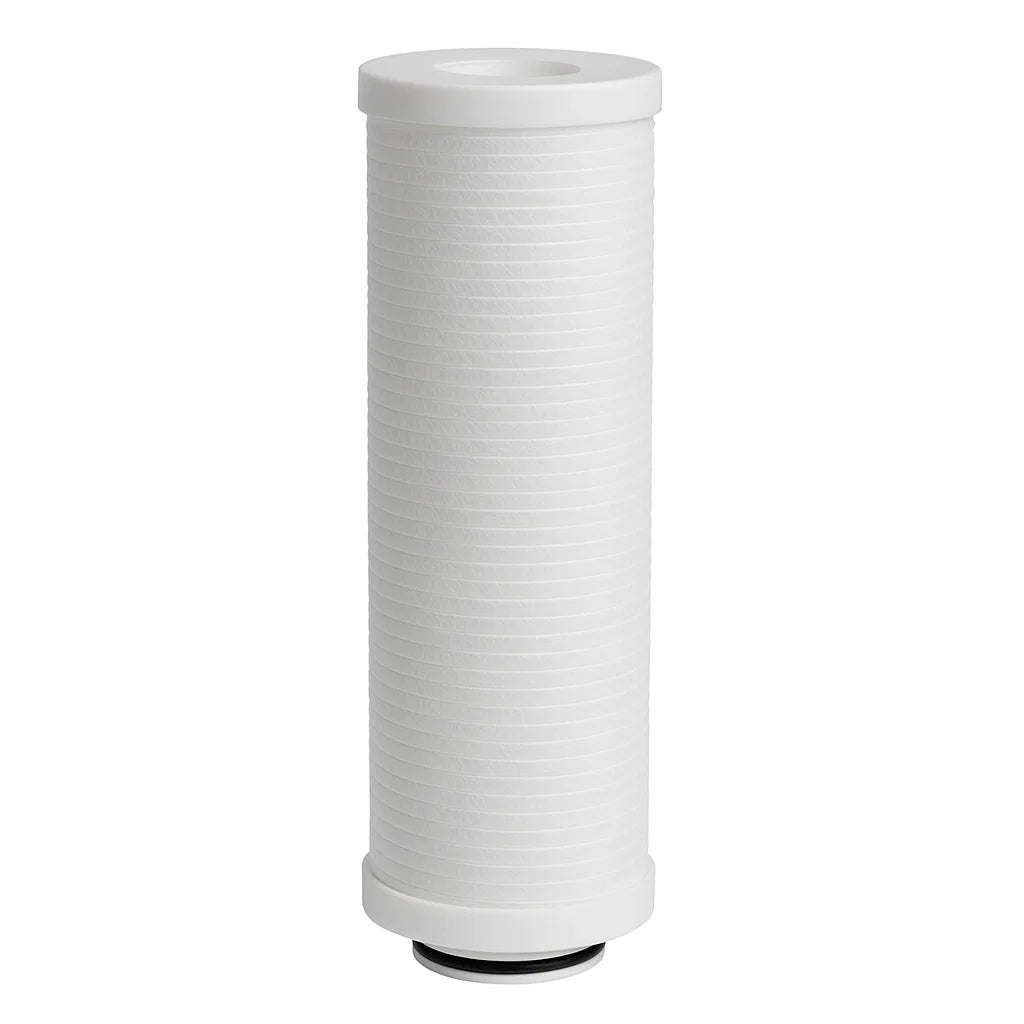

Using imported ultra-fine glass fiber material, the fiber diameter is strictly controlled within the range of 0.5-2 μ m, and the filtration area covers 0.67-0.98 m ²/10 "with different precision. The maximum temperature resistance is 80 ℃, and the maximum pressure difference at 21 ℃ is 4 bar. The filtration precision can be selected from 0.2 μ m to 5 μ m. This series of filter cartridges is formed through multi-layer composite technology to ensure uniform fiber distribution, with an initial pressure difference as low as 0.02 bar, effectively reducing system operating energy consumption.
Specially designed for high particle materials such as colloids and oils, it is widely used in industrial fluid filtration scenarios such as coatings, inks, adhesives, etc. It is particularly suitable for pre-treatment processes that require high filtration efficiency and pollutant holding capacity, and can significantly extend the service life of high-precision filter elements in the backend.
Quality advantage: Each filter element undergoes 100% integrity testing (bubble point+diffusion flow) before leaving the factory, with only 50% of similar products in the same industry being sampled; Fiber uniformity is better than the industry standard by 15%, avoiding performance degradation caused by local blockage; The performance degradation after 72 hours of continuous operation at 80 ℃ is ≤ 5%, far exceeding the average degradation rate of 15% in the same industry; The pollutant absorption capacity is 30% higher than similar domestic products, and the service life is extended by 25%.
